【Product introduction】
Appearance of adapter must be smooth and clean. It has no oil, burrs, scars and crack；
The color of adapter must be bright in good consistency；
All parts of adapter can assembly well without difficulty, it should be easy and
comfortable to plug in and pull out connector from adapters, the clip should be
powerful.
Modes：SM ；
sleeve in high precision；
all material meets RoHS
low insertion loss
good repeatability
good interchangeability
Easy installation
good temperature stability
l Optical fiber communication system
cable television network
LAN,WAN
Optical fiber access network
video transmission
test equipment
|
Project |
Values |
||
|
Reference standard |
YD/T 1272.1-2003 |
||
|
Insertion loss |
≤0.2dB |
||
|
IL change absolute value |
low temperature |
Temperature: -40℃ Duration: 168 h |
≤0.2dB |
|
high temperature |
Temperature: 85℃ Duration: 168 h Temperature change rate: 1℃/min |
≤0.2dB |
|
|
Hot and humid |
Temperature: 40℃ Humidity: 90%~95% Duration: 168h Temperature change rate: 1℃/min |
≤0.2dB |
|
|
Temperature cycle
|
Temperature: -40℃ to + 85℃ Duration: 168h Cycle times:21 Temperature change rate: 1℃/min |
≤0.2dB |
|
|
repeatability |
Insertion pull times:10 |
≤0.2dB |
|
|
Mechanism durability |
Insertion times: 500 cycles |
≤0.2dB |
|
|
Tensile strength Of coupling mechanism |
68.6N/10 Minute |
≤0.2dB |
|
|
pull-out force |
≤19.6.N |
|
Flame resistance |
UL94-V0 |
|
work temperature |
-25℃～+75℃ |
|
storage temperature |
-40℃～+85℃ |
|

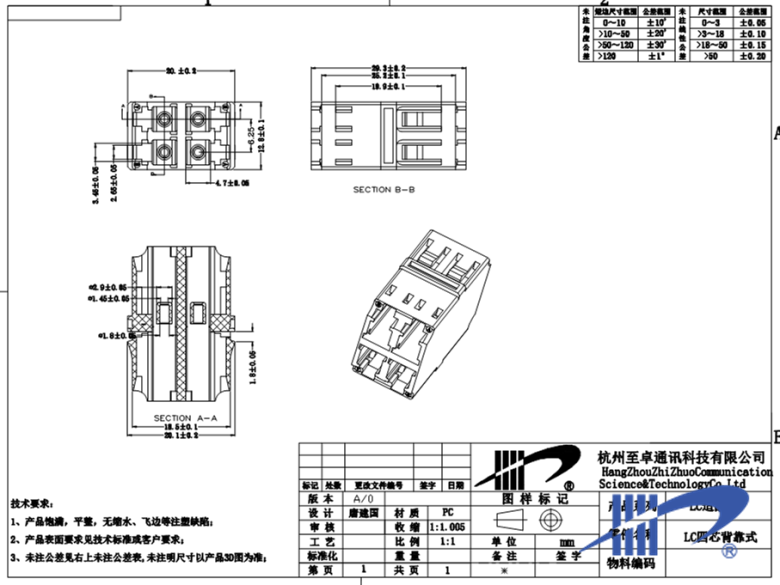

parts Name |
Qty |
Requirement |
|
Body(housing) |
1 |
PC |
|
Lining |
4 |
PES |
|
防塵帽 Dust cap |
4 |
TPV |
|
Sleeve |
4 |
Zirconia Ceramic |
