FC/PC2.0 parts (zinc alloy)

Specification typeSpecifications:FC/PC2.0 parts (zinc alloy,PVC)Number:1.01.13.01.0001

Product BriefFC/PC2.0 parts (zinc alloy,PVC)

Back

【Product introduction】

1Product appearance

? comply with EU ROHS standards

1Product characteristics

Plastic parts shall be free of injection defects, dirt, mechanical damage, good color consistency, flame retardant and pass the high and low temperature tests.

The surface of hardware is not damaged, and the salt spray test is passed.

? dimensions in accordance with IEC standards and good stability

1Application scope

Telecommunication network, man, optical fiber communication system

Optical fiber testing instruments

? Optical CATV, optical sensor

Fiber broadband access network, FTTH fiber to the home

? fiber distribution frame, rack and wall mounted fiber distribution unit

5Technical index

項目

指標

Flame retardant test of plastic parts (UL94 V-0 grade)

Burning vertically for 10 seconds, leaving the flame for 10 seconds and extinguishing; burning or hot particles falling from the test sample will not spread the combustion to the bottom layer placed under the test sample.

hot test

+85 for 168 hours. The product shall be free of deformation, crazing, and other mechanical damage.

Cryogenic test

-40 , lasting for 168 hours. The product shall be free of deformation, crazing, and other mechanical damage.

Salt spray test

5% concentration, 48 hours, no deformation, peeling, corrosion, etc.

Operating temperature,

-40~+85攝氏度

Damp heat test

Temperature: 40 ; relative humidity: 90% - 95%; duration: 168h, no mechanical damage such as deformation, crazing, relaxation, etc.

Plug force test

Allowable insertion and removal force: 19.6n maximum

technical standard

YD/T1272.4-2007

6Component composition

組件名

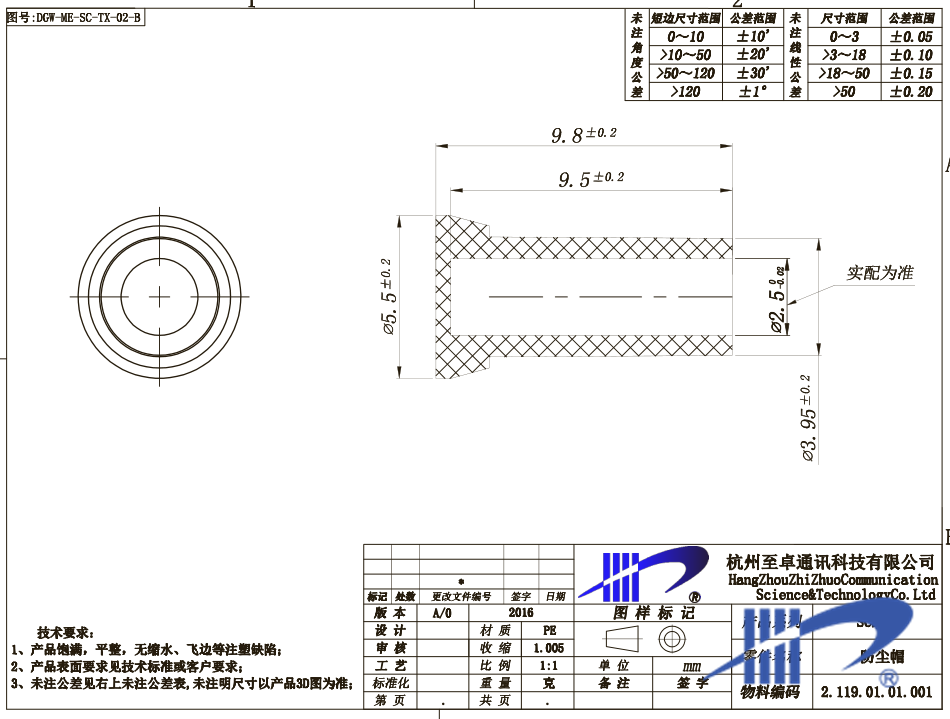

FC散件防塵帽(透明)

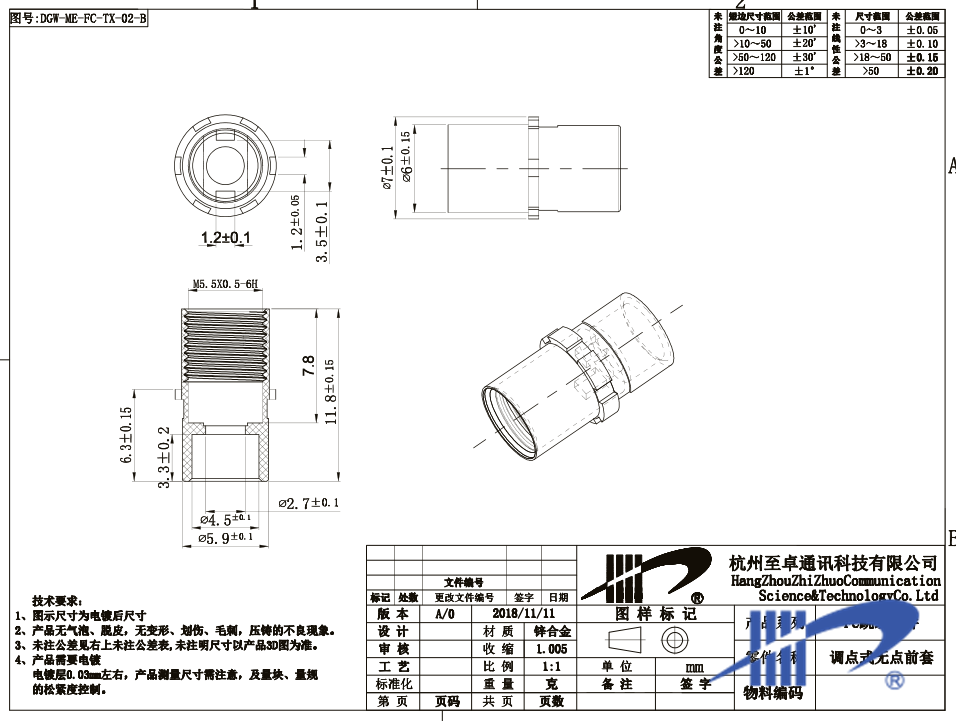

FC針套

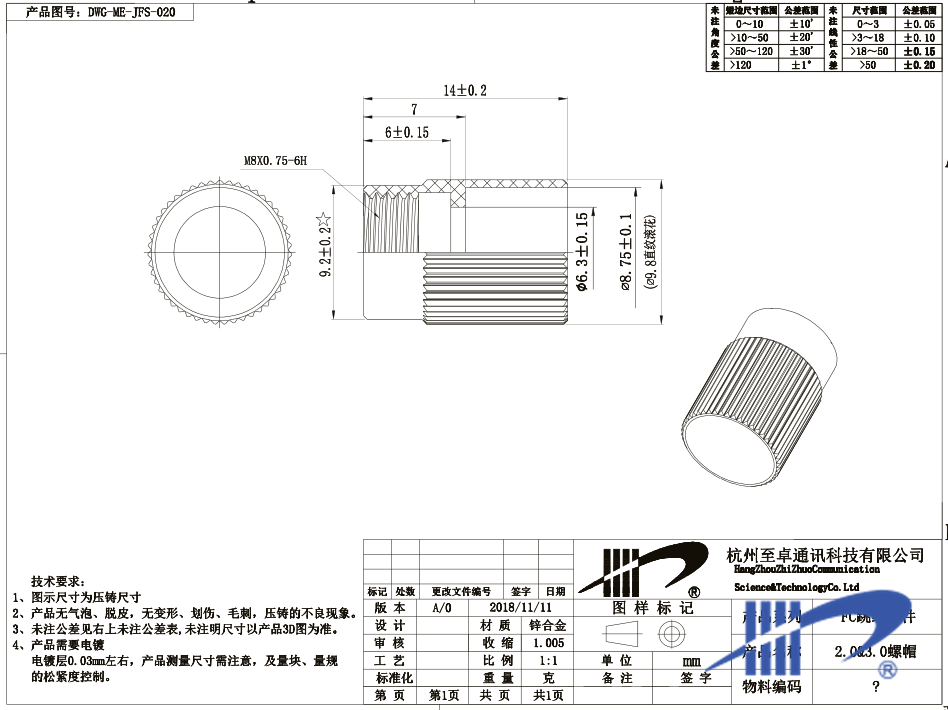

FC螺母

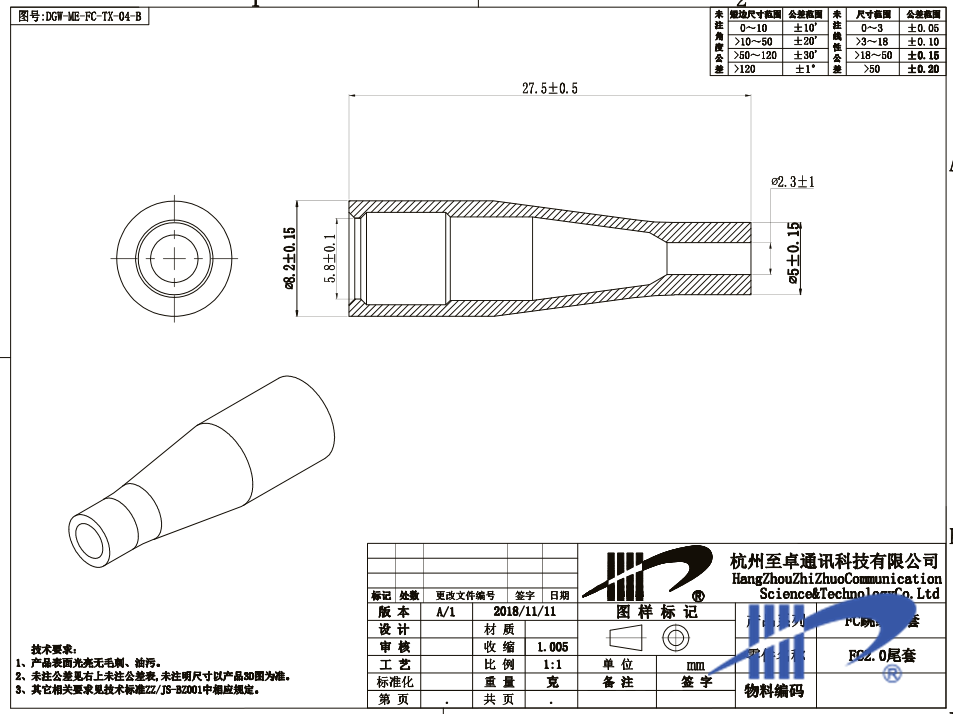

FC尾套

FC大壓環(huán)

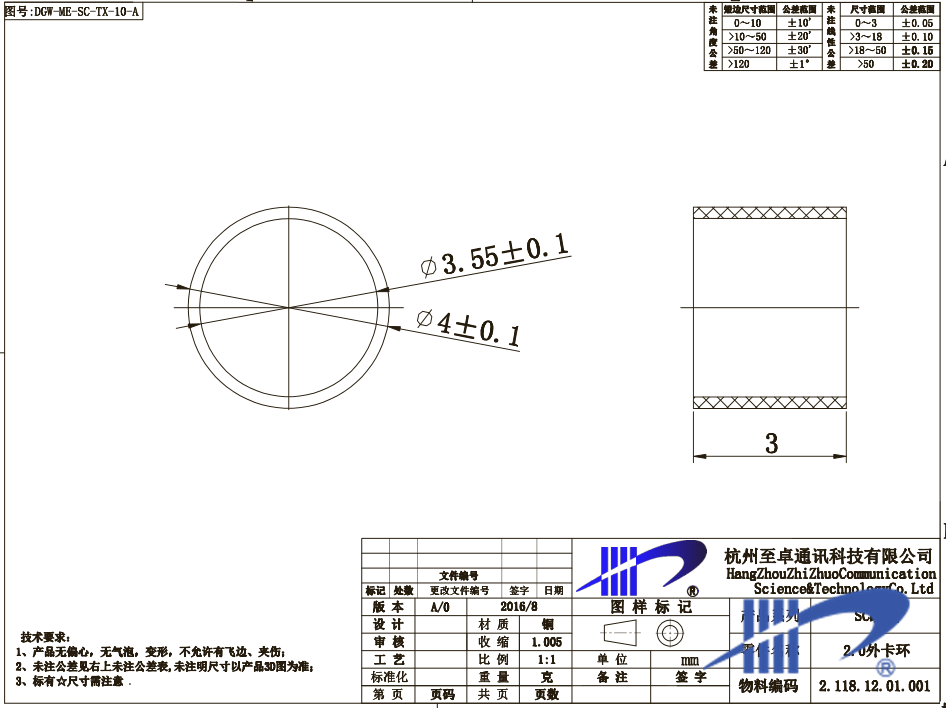

FC小壓環(huán)

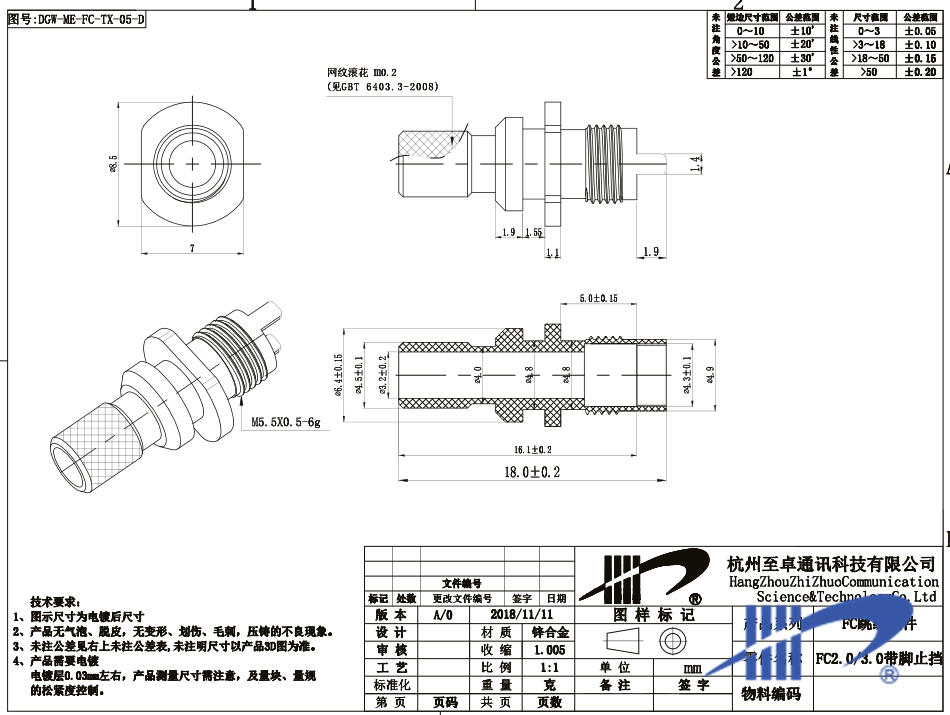

FC止擋

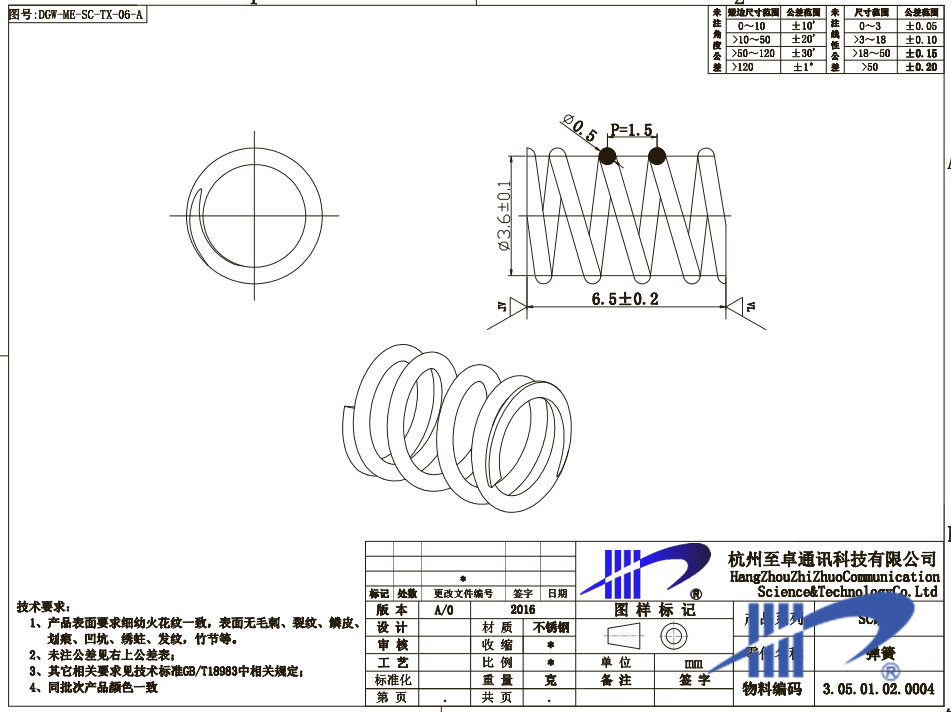

彈簧

材質

PE

鋅合金

鋅合金

PVC

鋅合金

SUS304

ROHS要求

符合

符合

符合

符合

符合

符合

符合

符合

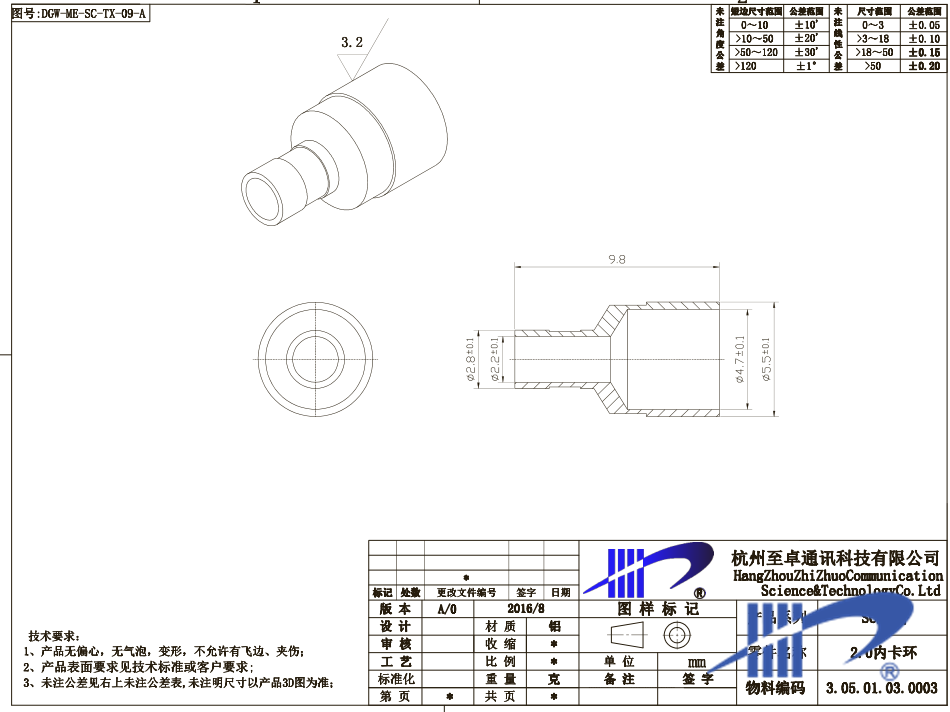

7Product size
